The 410 Project
No. 410 Technical Information
Road Name and Number: Boston and Maine R.R. No. 410
Class, Wheel Arrangement: G-11-a, 0-6-0
Cylinders: 19-inch bore x 26-inch stroke
Drivers (diameter): 52-inches, later reduced to 48 inches
Boiler Pressure: 200 lbs. per square inch
Tractive Effort (w/ 52-inch drivers): 30,700 lbs.
Valve Gear, Type: Stephenson, “D” slide
Air Pumps: 9½ inch diameter
Head End Lighting, Tender Headlight: Yes
Injector: Type 9B
Power Reverse: Alco Type G
Equipped for snow melting: Yes
Width Over Eaves: 9 feet 5 inches
Width Over Cylinders: 9 feet 8 inches
Height to Top of Stack: 13 feet 11 inches
Height Over Safety Valve: 14 feet 3 inches
Length Overall + Tender: 58 feet 1inch
Length Locomotive Only: 33 feet 4 inches
Length Tender Only: 24 feet 9 inches
Weight Locomotive + Tender: 241,700 lbs.

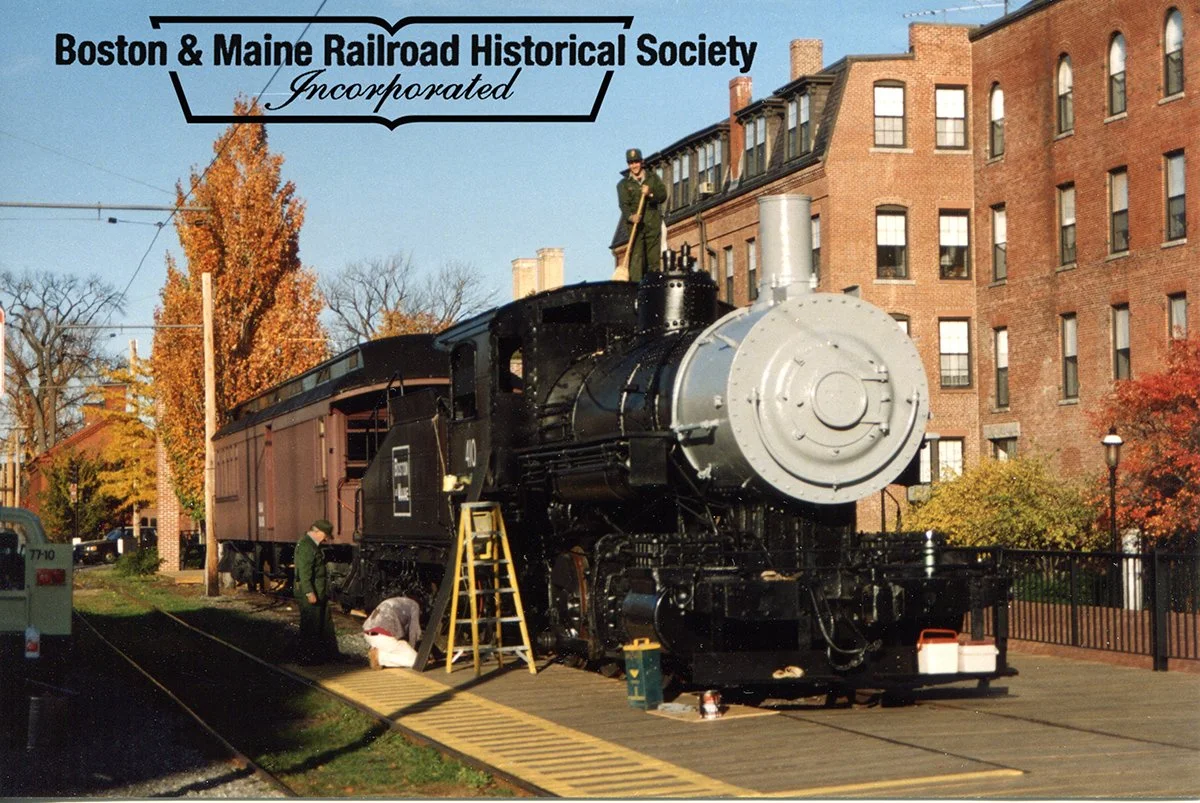

The historic industrial city of Lowell, Massachusetts is home to Boston & Maine Railroad steam locomotive No. 410. Together with its combination coach-baggage car No. 410 is the visual centerpiece of the city and the focus of our Society’s preservation efforts.

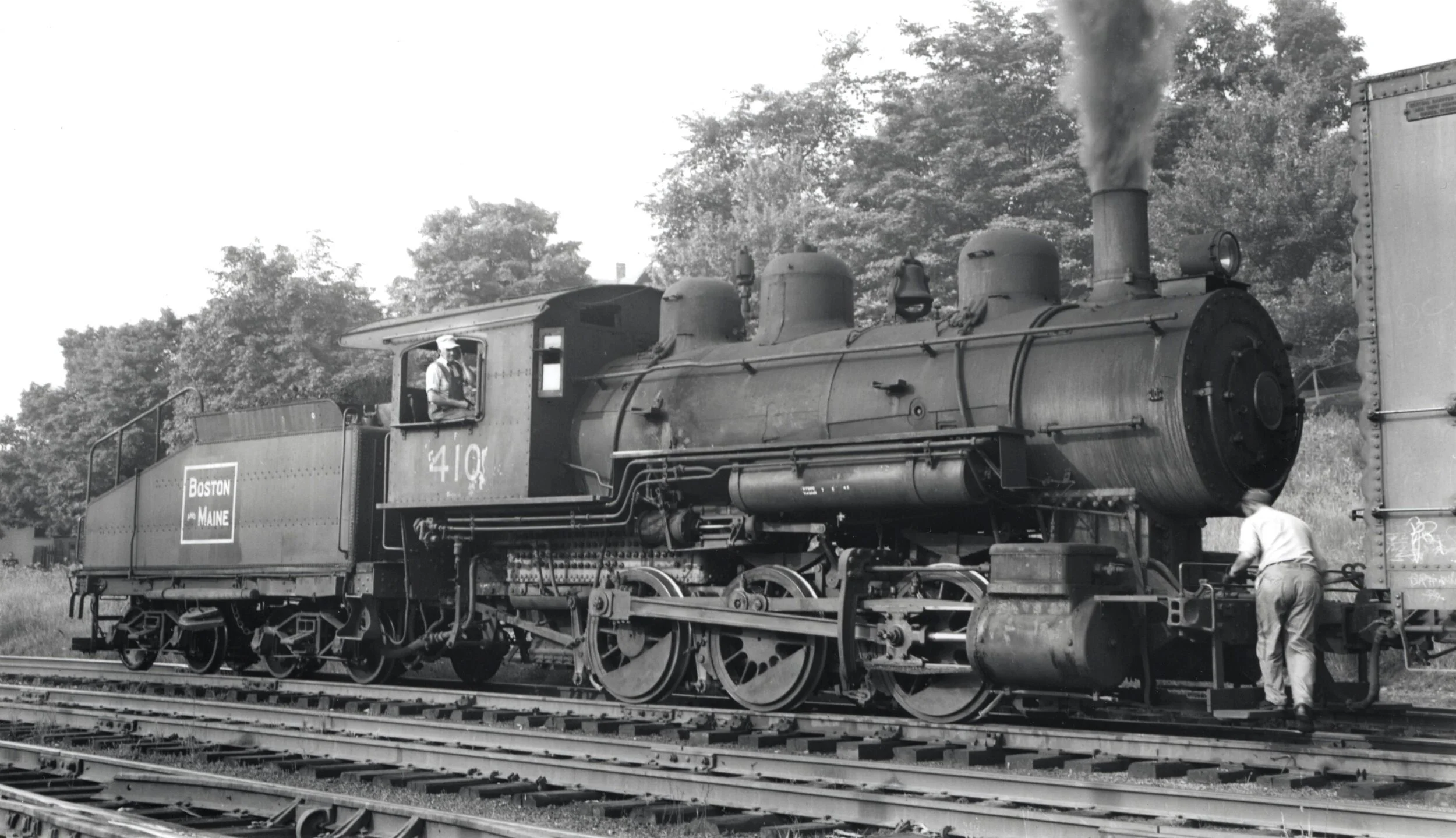

The 410 was built by the Manchester Locomotive Works at Manchester, N.H., in June 1911. This locomotive did switching duty at Lowell and other locations on the B&M during her active days on the railroad. A switching locomotive is designed to deliver cars of raw materials from the railroad yard to local industries, to pick up loaded and empty cars, and to make up and break down intercity trains that will be moved to distant destinations by larger, more powerful “road engines.” The 410’s short wheelbase was particularly useful in navigating the tight curves and narrow clearances of the industrial tracks that wound through the streets and alleys of Lowell.

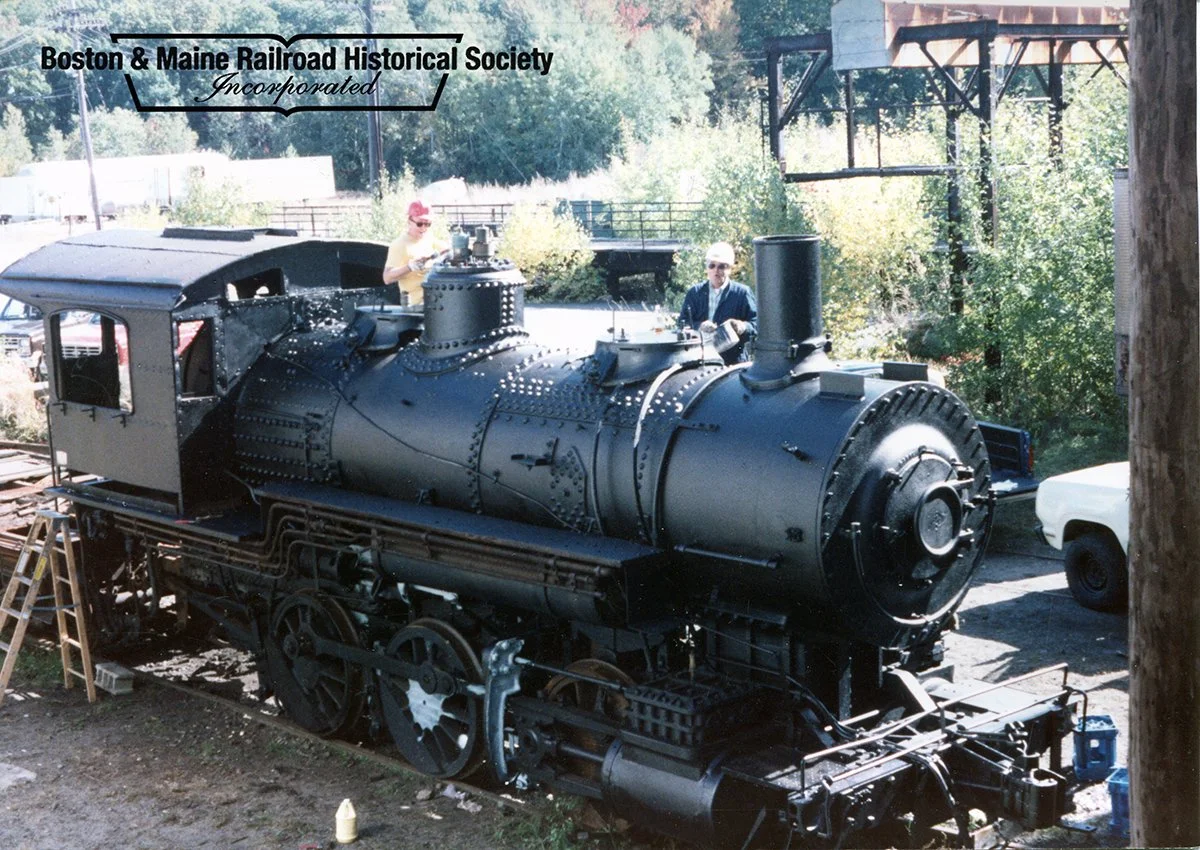

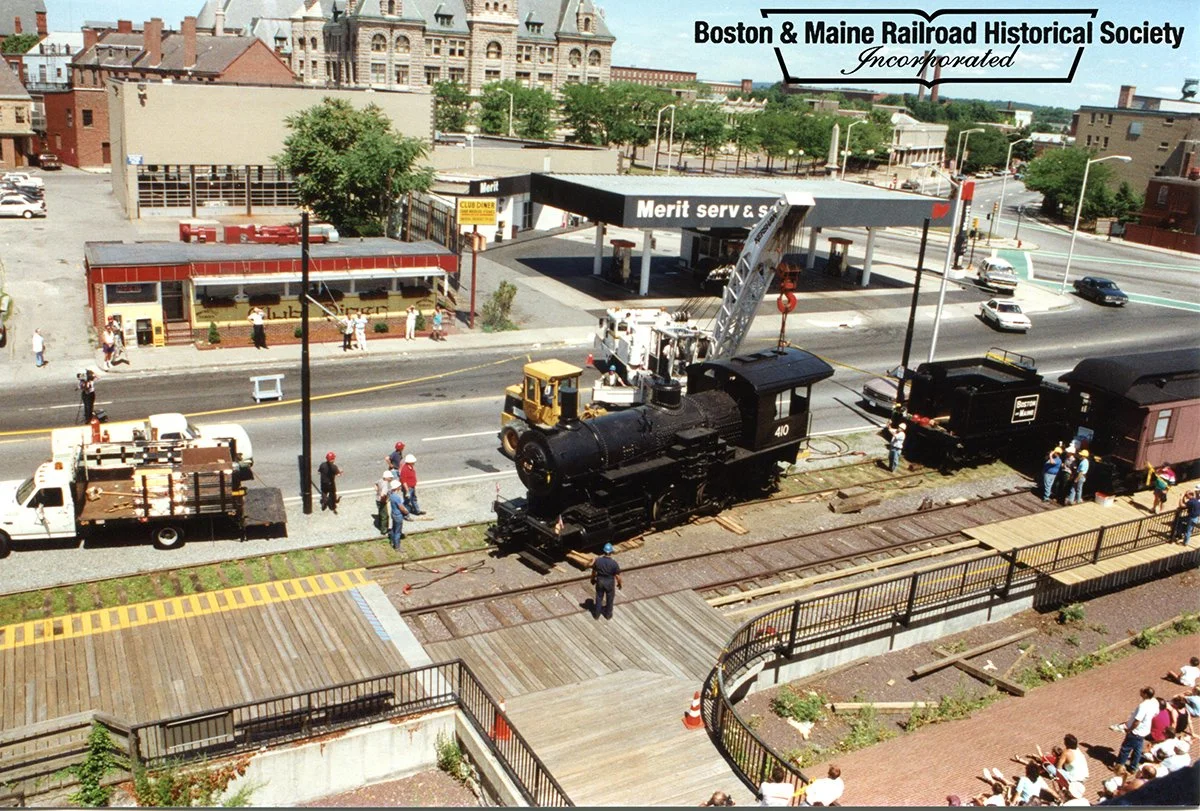

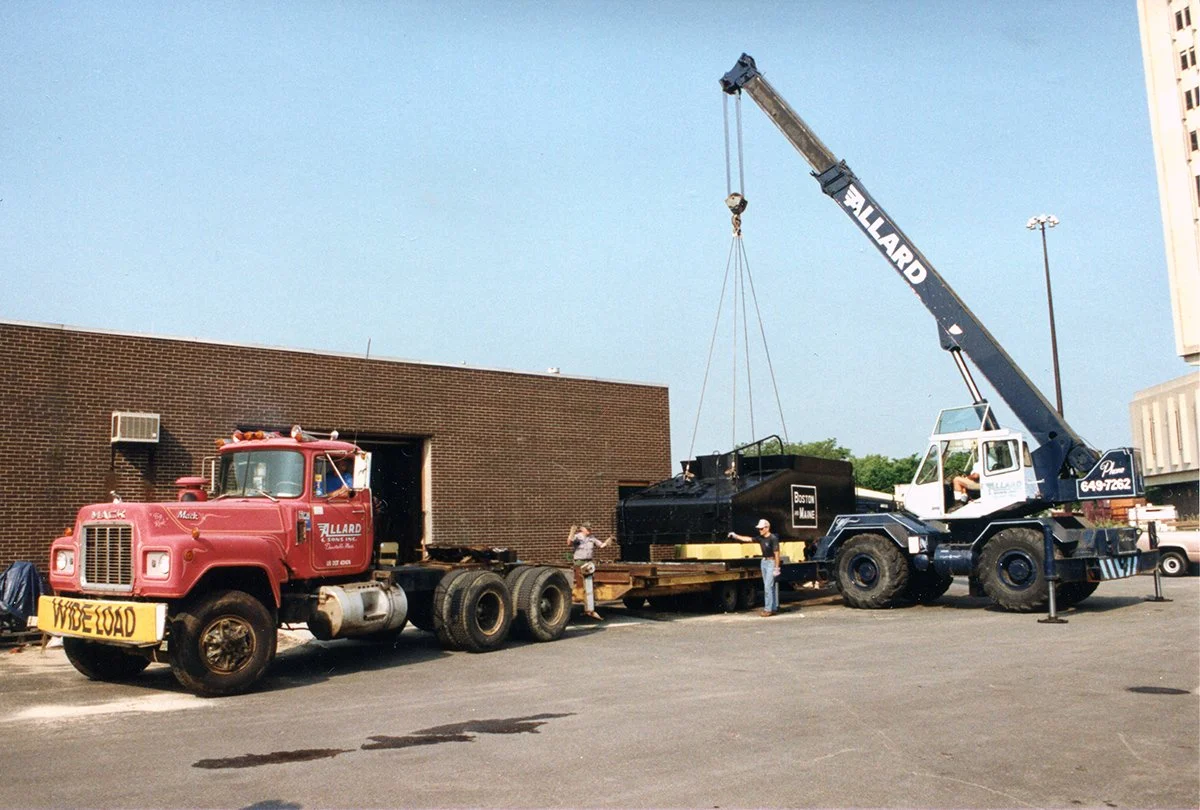

Like all steam-powered engines, No. 410 was rendered obsolete by diesel engines that required far less maintenance. Sold to the H. E. Fletcher Granite Company in Westford, Massachusetts on June 28, 1950, No. 410 worked in a quarry until her flue time expired and she was replaced by another retired B&M steam switcher in April 1952. Later, No. 410 was acquired by the Commonwealth of Massachusetts for preservation at the Museum of Transportation in Boston and was moved to the B&M Shops at North Billerica, Massachusetts. This plan was not realized, however, and through the efforts of national, state, and local agencies No. 410 was brought to Lowell on July 17, 1993. The Society has been involved with the restoration since 1992 when a group of our members started working on the engine at North Billerica. By the time it arrived at Lowell, brought by rail and then lifted by crane to the track where she now sits, No. 410 had been scraped, painted, and lettered by NPS and B&MRRHS volunteers. Click here to view the project log!
Combine Coach No.1244
The railcar, No. 1244, is set up as a combination coach-baggage car, known by railroaders as a “combine,” but was built by the Pullman Company in July 1907 as a 72-passenger coach. It is 60 feet 2 inches in length and has open platforms at both ends. It was built as No. 1244, renumbered to 244 in 1930, and rebuilt as maintenance of way car No. M3031 at Concord, N.H. in September 1946. It was sold to Luria Brothers in 1962, and then led a nomadic life on the St. Johnsbury & Lamoille County Railroad, the Montpelier and Barre Railroad, and the Goodwin Railroad. Following a sojourn at Wolfeboro Falls, N.H., No. 1244 the car came to Lowell. It is owned by the Lowell Historic Preservation Commission. The section of track on which it sits is on land owned by the Commonwealth of Massachusetts and is adjacent to the site of the original Boston and Lowell station at the corner of Merrimack and Dutton streets. The B&MRRHS displays items from its hardware collection in the combine. An attractive exhibit in the combine, “The History of Railroads in Lowell,” was opened to the public in June 1993, made possible with a grant from the Lowell Historic Preservation Commission. The B&MRRHS and the National Park Service share the responsibility for maintaining the car.
Hardware Curator Richard Nichols has compiled an illustrated summary of the combine’s contents.
